Teekay Axiflex Couplings, with EPDM Gasket, used to connect plain ended pipes, in pressurised applications below ground. Does not include anchor rings, which means another method must be used to prevent the pipes pushing or pulling apart.

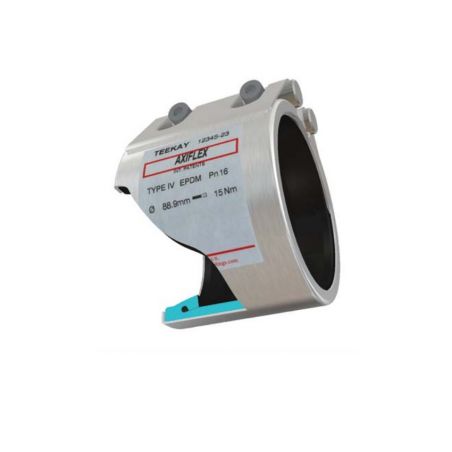

The Teekay Axiflex is a high performance coupling that allows generous pipe angulation and expansion/contraction. The Axiflex is a popular choice of coupling with water authorities, civil engineers and building contractors and is available in sizes up to 4.2m in diameter. The stainless steel and high strength steel designs ensure significant weight savings are achieved over cast iron couplings. The result is less manpower, quicker installation times and massive cost savings.
Teekay Axiflex does not contain anchor rings and therefore allows for greater expansion and contraction. The pipes should be restrained to prevent them from pushing or pulling apart. Therefore diameters up to 4 metres are possible with this design. The coupling can be placed over the pipe ends or supplied in a wrap - around version.
Casing: AISI 304 / DIN 1.4301
Fasteners: AISI 316 / 316L
Gasket: EPDM/NBR/H-NBR/FKM/VMQ
Manufacturer: Teekay
