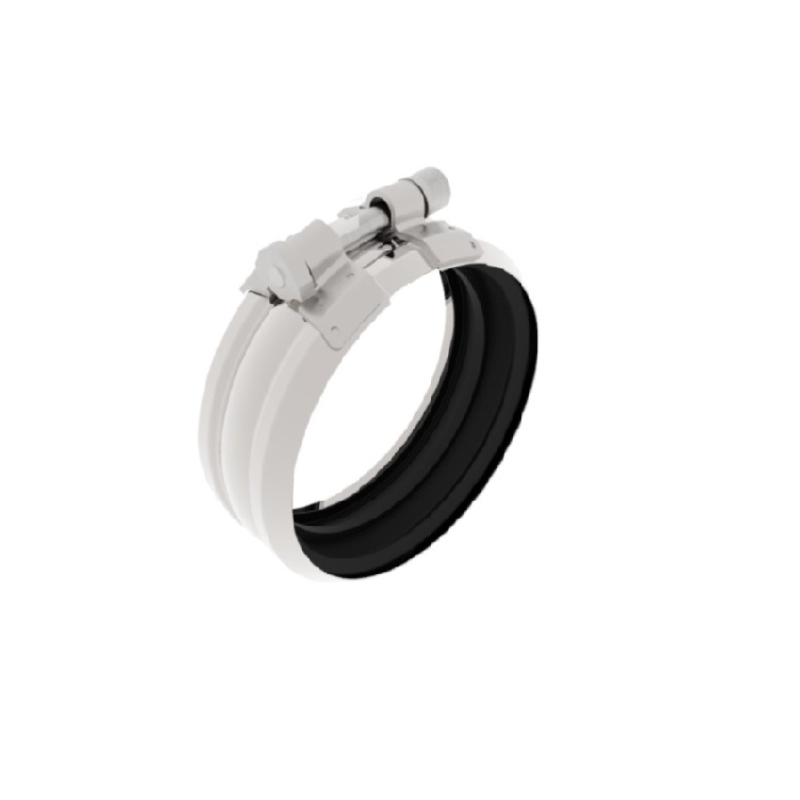

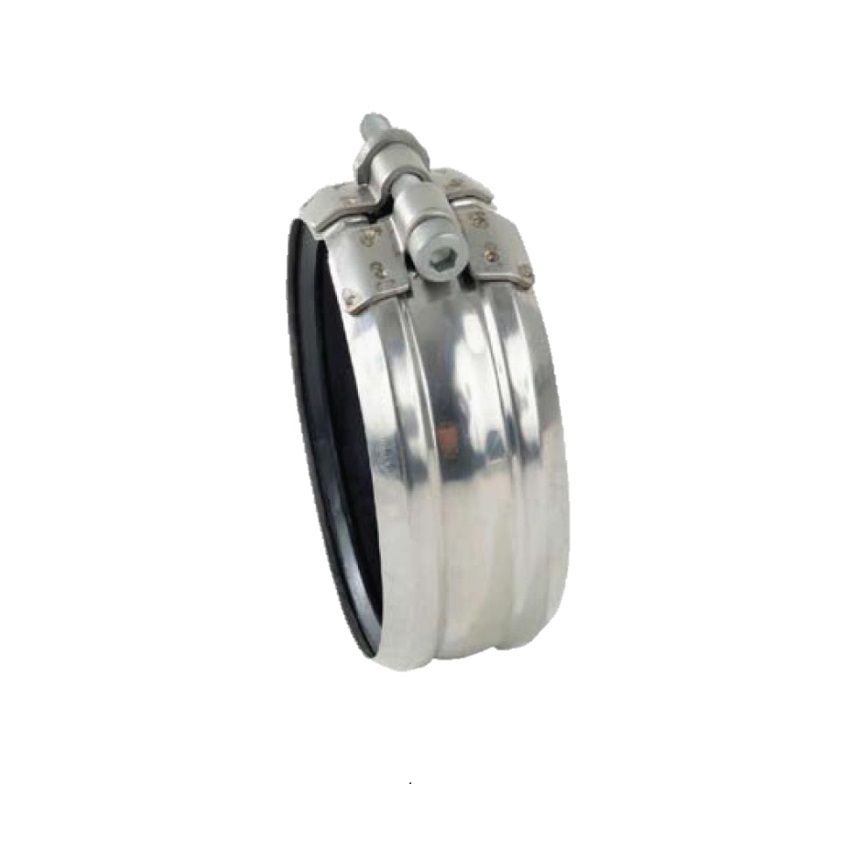

Pam Building Ensign Stainless Steel Coupling Rapid, available in 50mm, 70mm, 100mm, 125mm, 150mm, 200mm, 250mm & 300mm diameter, for Above Ground.
Technical Specification
Product code: See Table
Standard: BS EN 877: 1999/AC: 2008
Material: Stabilized Chrome Steel, Mat No 1.4510/11
Pressure: 5bar Restained / 1bar Un-restrained – 10bar with EC002GC
Bolts: Mild Steel Grade 8.8 Dacromet 500B Coated 6mm Socket
Cap Set Screws (M8)
Nuts: Mild Steel Dacromet 500B Coated Hex Head Nuts (M8)
Gasket Material: EPDM Rubber EN 681
Torque Setting: 20N/m
Coupling Deflection: +/-3°
System Fire Rating: A1
Water Temperature Rating: 95° +/- 2° (Resistance to Hot Water in 24hr cycle constant)
Manufacturer: Pam Building
Product Codes:
