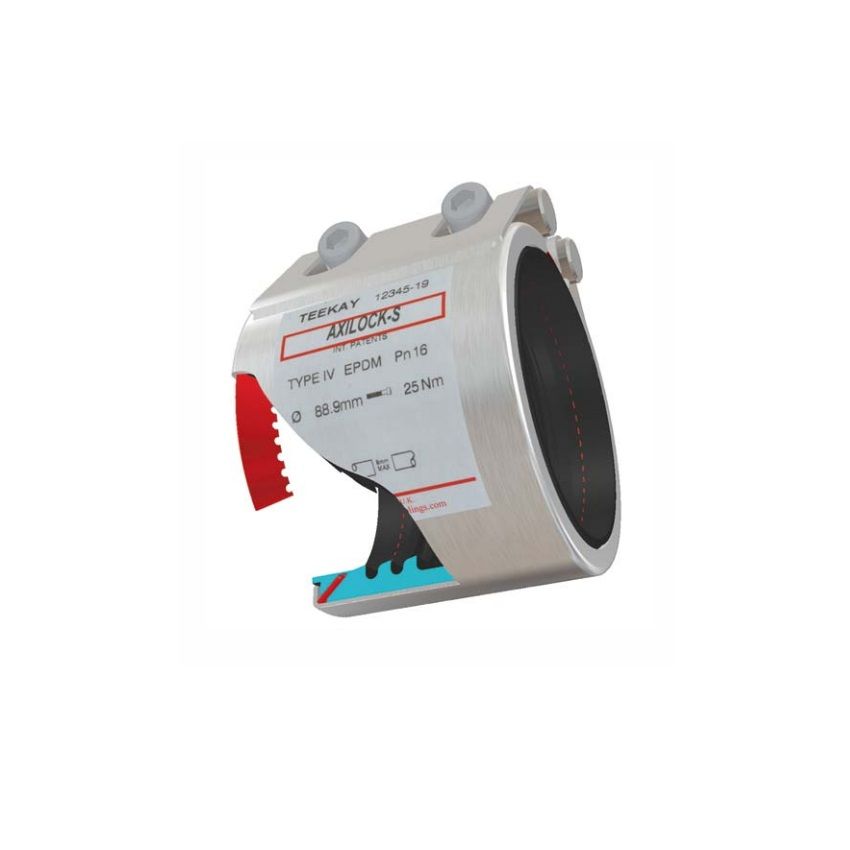

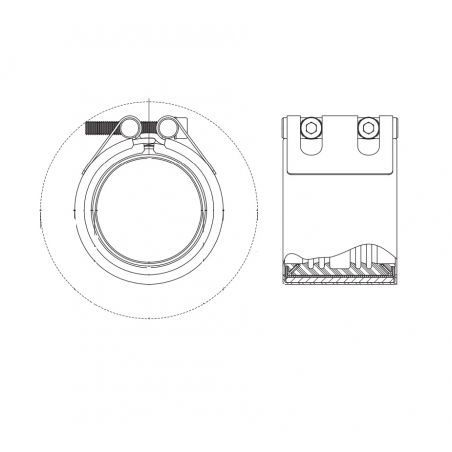

Teekay Axilock-S High Pressure Coupling PN10 (10 bar unrestrained), with EPDM Gasket. Used to connect cast iron and ductile iron plain ended pipes in pressurised applications above ground (INTERNAL USE ONLY). Size ranges from 57mm- 323mm diameter. Measurements / size variant shown is the external OD of the pipe.
Axilock-S couplings are suitable for connection onto cast iron, ductile iron & other materials.
The Teekay Axilock range is designed to replace the need for flanging, welding, pipe grooving and pipe threading by providing a quick and easy solution to joining plain-end pipe. Incorporating grip rings at each end of the fitting, the Teekay Axilock offers high levels of security by locking the pipes together under pressure.
Each coupling is 100% rubber-lined, ensuring that high levels of corrosion resistance are maintained throughout the life of the coupling. Available in single (Axilock-S) and double (Axilock) casing versions depending on pressure and diameter.Both models are suitable for new installations and retro-fit, whether on a ship, building or process plant.
The Teekay Axilock range offers a versatile pipe coupling system that accommodates angulation, vibration and vacuum.
Type 1 specification for above ground:
Casing: AISI 304 / DIN 1.4301
Fasteners: Alloy Steel, Coated
Gasket: EPDM/ NBR/ HNBR/ Silicone
Manufacturer: Teekay
