Skyline Aluminium Canopy with Built in Drainage

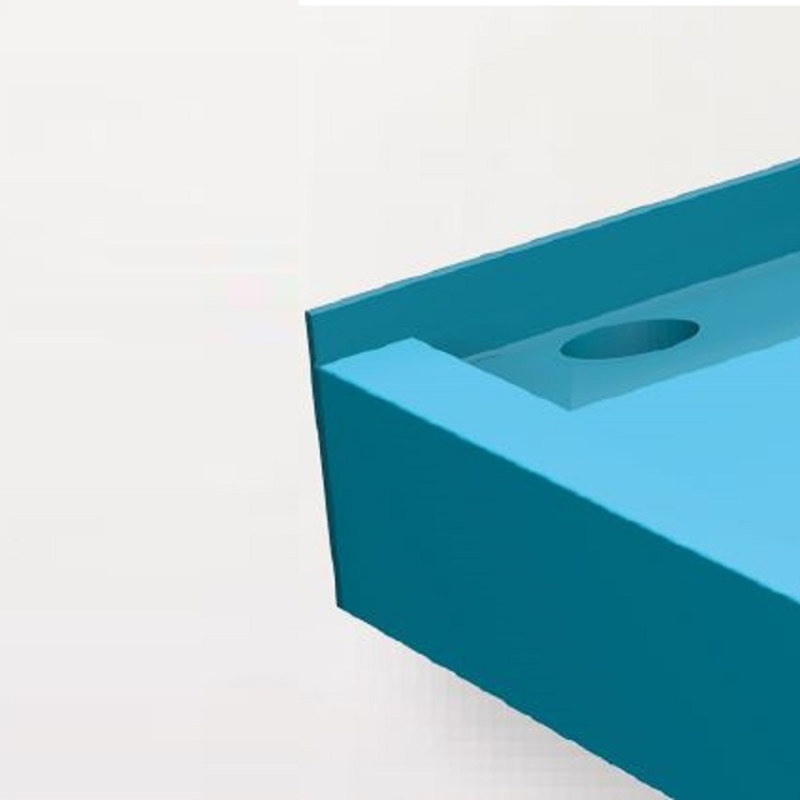

Skyline Aluminium Door Canopy incorporates built-in drainage, which diverts rainwater off the canopy into a small rainwater outlet located in an integral gutter at the building facade (downpipe not inlcuded).The outlet is designed to work with 63mm aluminium downpipes (not supplied), available in right hand or left hand configurations to suit project drainage requirements.

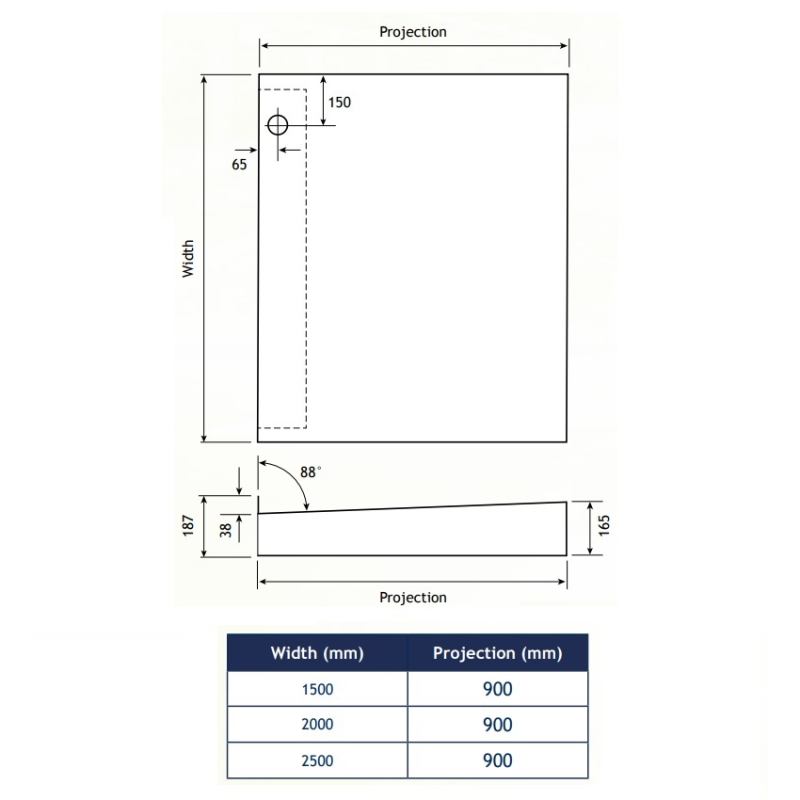

CA160 Aluminium Door Canopy features a bold 165mm front edge profile and has a shallow fall towards the building façade, where the built in gutter captures the rainwater. The standard CA160 Door Canopy has a projection of 900mm and is available in 1.5m, 2m and 2.5m widths to cater for different opening sizes.

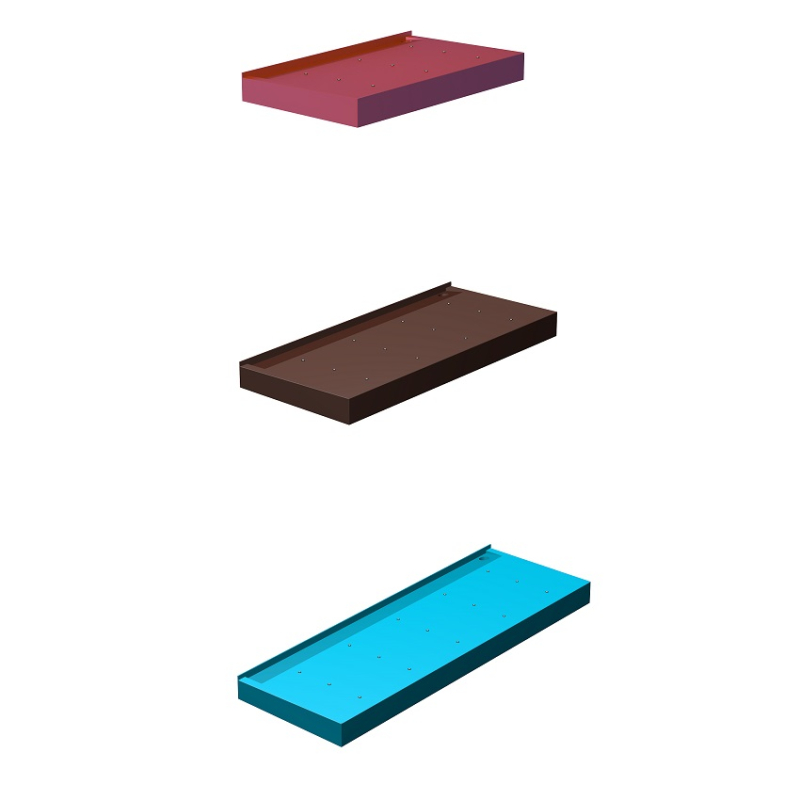

Aluminium canopies can be supplied in either Mill finish (Non-painted) or from our range of 26 Standard PPC Colours - other colours are available upon request, but surcharges may apply.

All aluminium canopies come complete with support brackets. Each support bracket must be fixed at MAX 500mm intervals/centres - see below

• 1.5m Length canopies comes supplied with 3no Support Brackets
• 2m Length canopies comes supplied with 4no Support Brackets
• 2.5m Length canopies comes supplied with 5no Support Brackets

Please note, this canopy system does not come supplied with anchor bolts - for more information and advice on the fixings required; please contact us direct.

For more information on Skyline aluminium canopy installation, please see our download guides.

Lead time for standard aluminium canopy sizes is 15 working days - for bespoke sizes please contact us via email: sales@guttercentre.co.uk

Manufacturer: Alumasc

Product Code: CA160
